Single-ended and Balanced LCD Premium Cables
Premium cable features cryogenically treated four conductor stranded wire, each wire consisting of a large number of extremely fine strands of single-crystal OCC copper with a combined cross section equivalent to AWG 20 that ensures low resistance and negligible signal loss. The white/black cable uses silver-plated copper strands. Crystals within strands are oriented in a specific pattern to provide the best possible signal transmission.
Specifications
- Very flexible, tangle free
- Non-microphonic jacket
- Length: 2.5m; Weight: 110 g
Connectors:
- 1/4" (6.3mm) stereo OR 4-pin balanced XLR plug for connection to amplifier
- 2 x 4-pin mini XLR for headphone earcup connection
Electrical Specifications:
- Resistance: 12 milliohms per foot
- Capacitance: 10 picofarads per foot
- Inductance: 0.15 microhenrys per foot
- Dielectric strength: 1000V
Premium cable features cryogenically treated four conductor stranded wire, each wire consisting of a large number of extremely fine strands of single-crystal OCC copper with a combined cross section equivalent to AWG 20 that ensures low resistance and negligible signal loss. The white/black cable uses silver-plated copper strands. Crystals within strands are oriented in a specific pattern to provide the best possible signal transmission.
Specifications
- Very flexible, tangle free
- Non-microphonic jacket
- Length: 2.5m; Weight: 110 g
Connectors:

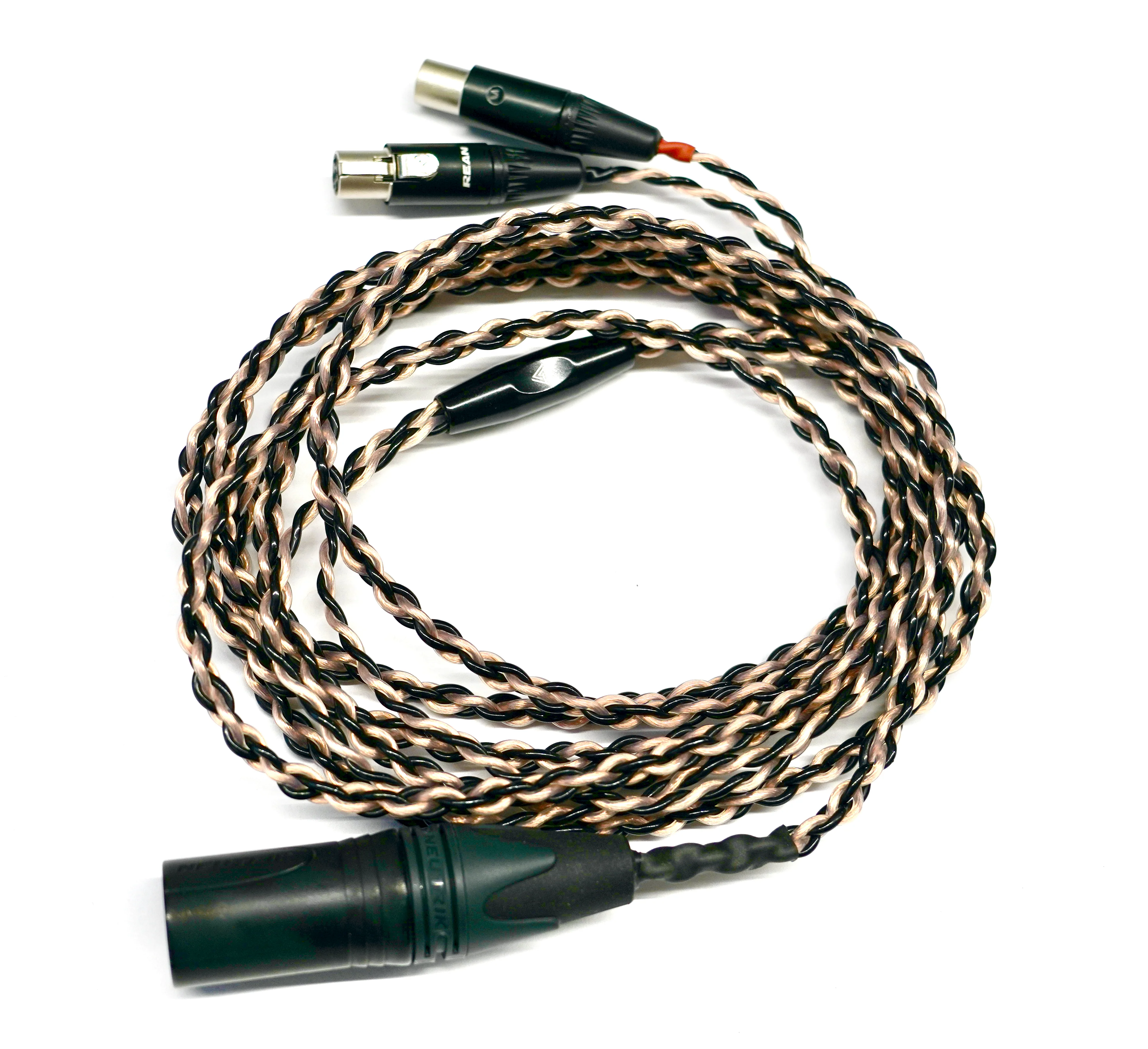

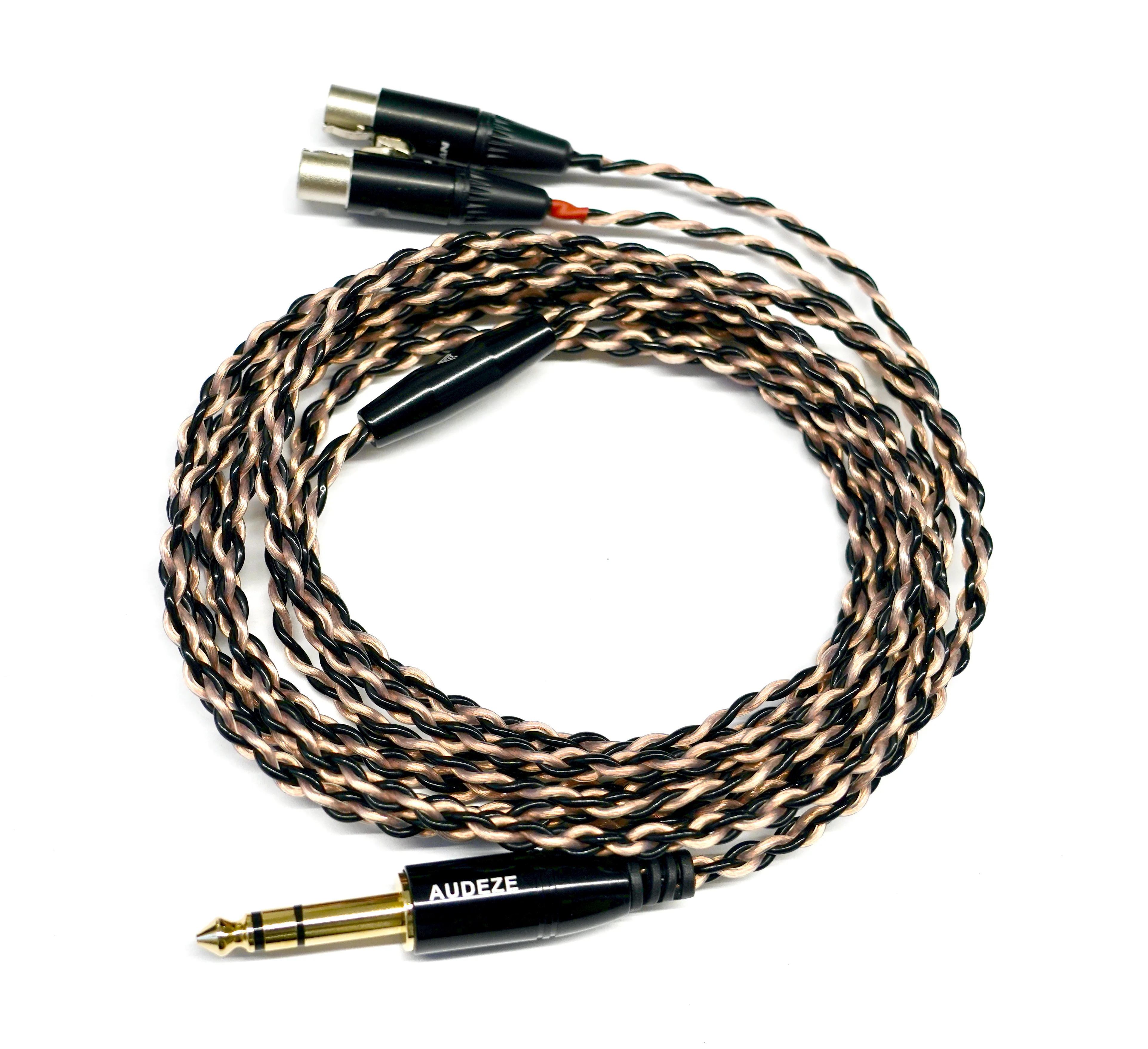

- 1/4" (6.3mm) stereo OR 4-pin balanced XLR plug for connection to amplifier
- 2 x 4-pin mini XLR for headphone earcup connection
Electrical Specifications:
- Resistance: 12 milliohms per foot
- Capacitance: 10 picofarads per foot
- Inductance: 0.15 microhenrys per foot
- Dielectric strength: 1000V
Description
Premium cable features cryogenically treated four conductor stranded wire, each wire consisting of a large number of extremely fine strands of single-crystal OCC copper with a combined cross section equivalent to AWG 20 that ensures low resistance and negligible signal loss. The white/black cable uses silver-plated copper strands. Crystals within strands are oriented in a specific pattern to provide the best possible signal transmission.
Specifications
- Very flexible, tangle free
- Non-microphonic jacket
- Length: 2.5m; Weight: 110 g
Connectors:
- 1/4" (6.3mm) stereo OR 4-pin balanced XLR plug for connection to amplifier
- 2 x 4-pin mini XLR for headphone earcup connection
Electrical Specifications:
- Resistance: 12 milliohms per foot
- Capacitance: 10 picofarads per foot
- Inductance: 0.15 microhenrys per foot
- Dielectric strength: 1000V
